DSPE*J, DSPE*JL, DSPE*JH
Sipariş Kodu:83330
Boyut:CETOPP05ISO4401-05ISO4401-07ISO4401-08ISO4401-10ISO4401-10+
CETOPP05
ISO4401-05
ISO4401-07
ISO4401-08
ISO4401-10
ISO4401-10+
Montaj Stili:alt plaka
Maksimum Çalışma Basıncı:350bar
Maksimum Akış:2800l/min
AÇIKLAMA

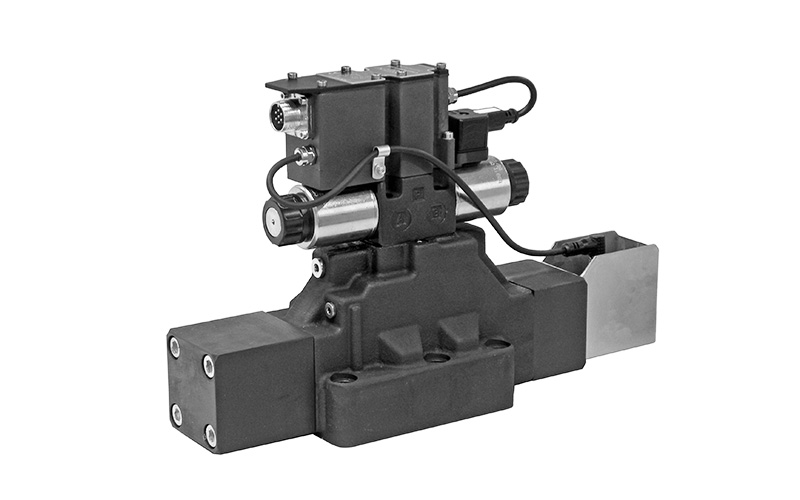

DSPE*J, DSPE*JL ve DSPE*JH, alt plaka montajı için yerleşik elektronik ve konum geri bildirimi ile pilot kontrollü orantılı yön valfleridir.
ISO 4401-05’ten ISO 4401-10’a kadar büyük boyutlu bağlantı noktalarıyla mevcuttur. hidrolik aktüatörlerin konumunu ve hızını kontrol etmek için kullanılırlar.
Her boyut için açık merkezli ve kapalı merkezli makaralar mevcuttur. Bunun yerine, DSPE7J*, DSPE8J* ve DSPE10J* için rejeneratif devreler için makaralar mevcuttur. Pilot beslemesi dahili, dahili basınç düşürme valfli dahili veya harici olabilir. Dahili veya harici drenaj.
Vanalar kapalı devre için farklı tipte yerleşik elektroniklerle mevcuttur:
J versiyonu, 6 pin + PE bağlantısı olan akım veya voltaj referans sinyaline sahip analog arayüzlü standart elektroniklerimizdir.
JL versiyonu, Io-Link, Can-Open veya analog arayüz ve 5 pin M12 bağlantısı olan kompakt kutu ile birlikte gelir.
JH versiyonu, 11 pin M12 bağlantısı olan EtherCAT, Ethernet/IP veya Profinet tipi saha veri yolu iletişimi için arayüze sahiptir.
| NG 10 KART ENTEGRELİ FEEDBACK’Lİ ORANSAL YÖN KONTROL VALFLERİ MAKS. BASINÇ 350(bar) | |||
| Malzeme Kodu | Konum & Spool Tipi | Nominal Akış (lt/dk) | Voltaj (V) |
| DSPE5J-C80SA/20N/E1K11 | NG 10 4/2 TB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5J-C80SA/20N/E1K11 | NG 10 4/2 TB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5J-A80SA/20N/E1K11 | NG 10 4/2 TB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5J-A80SA/20N/E1K11 | NG 10 4/2 TB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5J-C80/20N/E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5J-C80/20N/E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5J-C80/40/20N-E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 (P-A) / 40 (B-T) | 4-20mA |
| DSPE5J-A80/20N/E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5J-A80/20N/E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5J-A80/40/20N-E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 (P-A) / 40 (B-T) | 4-20mA |
| DSPE5RJ-C80SA/20N/E1K11 | NG 10 4/2 TB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-C80SA/20N/E1K11 | NG 10 4/2 TB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-A80SA/20N/E1K11 | NG 10 4/2 TB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-A80SA/20N/E1K11 | NG 10 4/2 TB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-C80/20N/E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-C80/20N/E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-C80/40/20N-E1K11 | NG 10 4/3 ÇB-KM (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-A80/20N/E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-A80/20N/E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 | 4-20mA |
| DSPE5RJ-A80/150/20N-E1K11 | NG 10 4/3 ÇB-ABT (Closed Loop) | 80 | 4-20mA |
| NG 16 KART ENTEGRELİ FEEDBACK’Lİ ORANSAL YÖN KONTROL VALFLERİ MAKS. BASINÇ 350(bar) | |||
| Malzeme Kodu | Konum & Spool Tipi | Nominal Akış (lt/dk) | Voltaj (V) |
| DSPE7J-C100SA/20N/E1K11 | NG 16 4/2 TB-KM (Closed Loop) | 100 | 4-20mA |
| DSPE7J-C150SA/20N/E1K11 | NG 16 4/2 TB-KM (Closed Loop) | 150 | 4-20mA |
| DSPE7J-A100SA/20N/E1K11 | NG 16 4/2 TB-ABT (Closed Loop) | 100 | 4-20mA |
| DSPE7J-A150SA/20N/E1K11 | NG 16 4/2 TB-ABT (Closed Loop) | 150 | 4-20mA |
| DSPE7J-C100/20N/E1K11 | NG 16 4/3 ÇB-KM (Closed Loop) | 100 | 4-20mA |
| DSPE7J-C150/20N/E1K11 | NG 16 4/3 ÇB-KM (Closed Loop) | 150 | 4-20mA |
| DSPE7J-C150/75/20N-E1K11 | NG 16 4/3 ÇB-KM (Closed Loop) | 150 (P-A) / 75 (B-T) | 4-20mA |
| DSPE7J-A100/20N/E1K11 | NG 16 4/3 ÇB-ABT (Closed Loop) | 100 | 4-20mA |
| DSPE7J-A150/20N/E1K11 | NG 16 4/3 ÇB-ABT (Closed Loop) | 150 | 4-20mA |
| DSPE7J-A150/75/20N-E1K11 | NG 16 4/3 ÇB-ABT (Closed Loop) | 150 (P-A) / 75 (B-T) | 4-20mA |
| NG 25 KART ENTEGRELİ FEEDBACK’Lİ ORANSAL YÖN KONTROL VALFLERİ MAKS. BASINÇ 350(bar) | |||
| Malzeme Kodu | Konum & Spool Tipi | Nominal Akış (lt/dk) | Voltaj (V) |
| DSPE8J-C100SA/20N/E1K11 | NG 25 4/2 TB-KM (Closed Loop) | 100 | 4-20mA |
| DSPE8J-C150SA/20N/E1K11 | NG 25 4/2 TB-KM (Closed Loop) | 150 | 4-20mA |
| DSPE8J-A100SA/20N/E1K11 | NG 25 4/2 TB-ABT (Closed Loop) | 100 | 4-20mA |
| DSPE8J-A150SA/20N/E1K11 | NG 25 4/2 TB-ABT (Closed Loop) | 150 | 4-20mA |
| DSPE8J-C100/20N/E1K11 | NG 25 4/3 ÇB-KM (Closed Loop) | 100 | 4-20mA |
| DSPE8J-C150/20N/E1K11 | NG 25 4/3 ÇB-KM (Closed Loop) | 150 | 4-20mA |
| DSPE8J-C300/150/20N-E1K11 | NG 25 4/3 ÇB-KM (Closed Loop) | 300 (P-A) / 150 (B-T) | 4-20mA |
| DSPE8J-A100/20N/E1K11 | NG 25 4/3 ÇB-ABT (Closed Loop) | 100 | 4-20mA |
| DSPE8J-A150/20N/E1K11 | NG 25 4/3 ÇB-ABT (Closed Loop) | 150 | 4-20mA |
| DSPE8J-A300/150/20N-E1K11 | NG 25 4/3 ÇB-ABT (Closed Loop) | 300 (P-A) / 150 (B-T) | 4-20mA |
| NG 32 KART ENTEGRELİ FEEDBACK’Lİ ORANSAL YÖN KONTROL VALFLERİ MAKS. BASINÇ 350(bar) | |||
| Malzeme Kodu | Konum & Spool Tipi | Nominal Akış (lt/dk) | Voltaj (V) |
| DSPE10J-C350SA/11N/E1K11 | NG 32 4/2 TB-KM (Closed Loop) | 350 | 4-20mA |
| DSPE10J-C500SA/11N/E1K12 | NG 32 4/2 TB-KM (Closed Loop) | 500 | 4-20mA |
| DSPE10J-A350SA/11N/E1K11 | NG 32 4/2 TB-ABT (Closed Loop) | 350 | 4-20mA |
| DSPE10J-A500SA/11N/E1K12 | NG 32 4/2 TB-ABT (Closed Loop) | 500 | 4-20mA |
| DSPE10J-C350/11N/E1K11 | NG 32 4/3 ÇB-KM (Closed Loop) | 350 | 4-20mA |
| DSPE10J-C500/11N/E1K12 | NG 32 4/3 ÇB-KM (Closed Loop) | 500 | 4-20mA |
| DSPE10J-A350/11N/E1K11 | NG 32 4/3 ÇB-ABT (Closed Loop) | 350 | 4-20mA |
| DSPE10J-A500/11N/E1K12 | NG 32 4/3 ÇB-ABT (Closed Loop) | 500 | 4-20mA |
| NG 40 KART ENTEGRELİ FEEDBACK’Lİ ORANSAL YÖN KONTROL VALFLERİ MAKS. BASINÇ 350(bar) | |||
| Malzeme Kodu | Konum & Spool Tipi | Nominal Akış (lt/dk) | Voltaj (V) |
| DSPE11J-C350SA/11N/E1K11 | NG 40 4/2 TB-KM (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-C500SA/11N/E1K12 | NG 40 4/2 TB-KM (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-A350SA/11N/E1K11 | NG 40 4/2 TB-ABT (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-A500SA/11N/E1K12 | NG 40 4/2 TB-ABT (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-C350/11N/E1K11 | NG 40 4/3 ÇB-KM (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-C500/11N/E1K12 | NG 40 4/3 ÇB-KM (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-A350/11N/E1K11 | NG 40 4/3 ÇB-ABT (Closed Loop) | 1000 | 4-20mA |
| DSPE11J-A500/11N/E1K12 | NG 40 4/3 ÇB-ABT (Closed Loop) | 1000 | 4-20mA |
