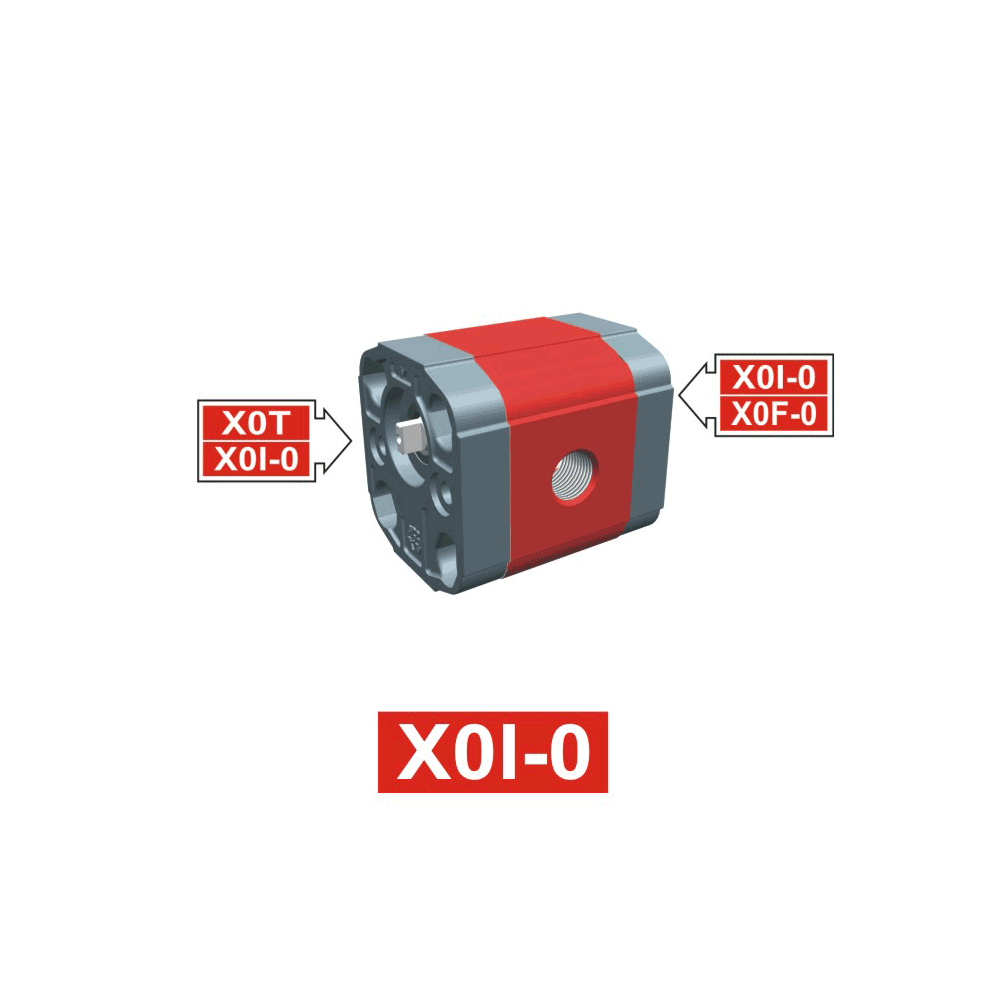

XI002 – SHAPED INTERMEDIATE PUMP ø22 FEMALE FLANGE
| Group 0 |
| Intermediary Pumps |
Açıklama
Teknik Veri Tablosu xi002-1.Pdf
| Technical data table | |||||
| TYPE | Displacement | Max. Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| X0I-0/0.17 | 0 | 220 | 260 | X0I123MBBA | X0I124MBBA |
| X0I-0/0.25 | 0 | 220 | 260 | X0I223MBBA | X0I224MBBA |
| X0I-0/0.45 | 0 | 220 | 280 | X0I423MBBA | X0I424MBBA |
| X0I-0/0.57 | 1 | 220 | 280 | X0I523MBBA | X0I524MBBA |
| X0I-0/0.76 | 1 | 220 | 280 | X0I623MBBA | X0I624MBBA |
| X0I-0/0.98 | 1 | 220 | 280 | X0I723MBBA | X0I724MBBA |
| X0I-0/1.27 | 1 | 220 | 280 | X0I923MBBA | X0I924MBBA |
| X0I-0/1.52 | 1 | 220 | 280 | X0I1123MBBA | X0I1124MBBA |
| X0I-0/2.30 | 2 | 190 | 210 | X0I1323MBBA | X0I1324MBBA |
P1) Max. working pressure – P3) Max. peak pressure
