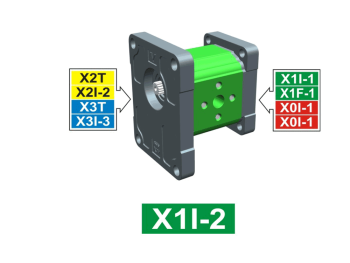

XI102 – SHAPED INTERMEDIATE PUMP ø25.4 FLANGE
| Group 1 |
| Intermediary Pumps |
Açıklama
| Technical data table | |||||
| TYPE | Displacement | Max. Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| X1I-1/0.9 | 1 | 240 | 280 | X1I1673SIIA | X1I1674SIIA |
| X1I-1/1.2 | 1 | 250 | 290 | X1I1773SIIA | X1I1774SIIA |
| X1I-1/1.7 | 2 | 250 | 290 | X1I1873SIIA | X1I1874SIIA |
| X1I-1/2.2 | 2 | 250 | 290 | X1I2073SIIA | X1I2074SIIA |
| X1I-1/2.6 | 3 | 250 | 300 | X1I2173SIIA | X1I2174SIIA |
| X1I-1/3.2 | 3 | 250 | 300 | X1I2373SIIA | X1I2374SIIA |
| X1I-1/3.8 | 4 | 250 | 300 | X1I2573SIIA | X1I2574SIIA |
| X1I-1/4.3 | 4 | 250 | 300 | X1I2773SIIA | X1I2774SIIA |
| X1I-1/4.9 | 5 | 250 | 300 | X1I2973SIIA | X1I2974SIIA |
| X1I-1/5.9 | 6 | 250 | 300 | X1I3173SIIA | X1I3174SIIA |
| X1I-1/6.5 | 7 | 250 | 300 | X1I3273SIIA | X1I3274SIIA |
| X1I-1/7.8 | 8 | 220 | 260 | X1I3473SIIA | X1I3474SIIA |
| X1I-1/9.8 | 10 | 190 | 230 | X1I3673SIIA | X1I3674SIIA |
P1) Max. working pressure – P3) Max. peak pressure
