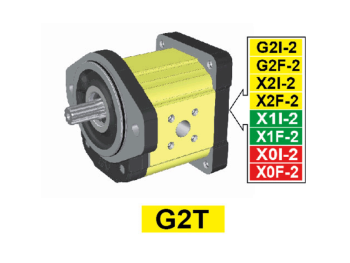

XI202 – SHAPED INTERMEDIATE PUMP ø36.5 FEMALE FLANGE
| Group 2 |
| Intermediary Pumps |
Açıklama
| Technical data table | |||||
| TYPE | Displacement | Max. Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| X2I-2/04 | 4 | 260 | 300 | X2I4171POOD | X2I4172POOD |
| X2I-2/06 | 6 | 260 | 300 | X2I4371POOD | X2I4372POOD |
| X2I-2/09 | 8 | 260 | 300 | X2I4571POOD | X2I4572POOD |
| X2I-2/11 | 11 | 260 | 300 | X2I4771POOD | X2I4772POOD |
| X2I-2/14 | 14 | 250 | 290 | X2I4971PPOD | X2I4972PPOD |
| X2I-2/17 | 17 | 230 | 270 | X2I5171PPOD | X2I5172PPOD |
| X2I-2/19 | 19 | 210 | 250 | X2I5371PPOD | X2I5372PPOD |
| X2I-2/22 | 23 | 200 | 240 | X2I5571PPOD | X2I5572PPOD |
| X2I-2/26 | 26 | 170 | 210 | X2I5771PQPD | X2I5772PQPD |
| X2I-2/30 | 30 | 160 | 200 | X2I5971PQPD | X2I5972PQPD |
| X2I-2/34 | 34 | 150 | 190 | X2I6171PQPD | X2I6172PQPD |
| X2I-2/40 | 40 | 140 | 180 | X2I6371PQPD | X2I6372PQPD |
P1) Max. working pressure – P3) Max. peak pressure
