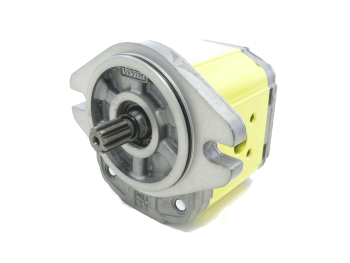

XP213 – HY TYPE PUMP Ø50 FLANGE
| Group 2 |
| Alluminium Product |
Açıklama
[section]
[ux_text text_align=”center”]
| Technical data table | |||||
| TYPE | Displacement | Max.Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| XV-2P/04 | 4,2 | 260 | 300 | X2P4121FSRA | X2P4122FSRA |
| XV-2P/06 | 6 | 260 | 300 | X2P4321FSRA | X2P4322FSRA |
| XV-2P/09 | 8,4 | 260 | 300 | X2P4521FSRA | X2P4522FSRA |
| XV-2P/11 | 10,8 | 260 | 300 | X2P4721FSRA | X2P4722FSRA |
| XV-2P/14 | 14,4 | 250 | 290 | X2P4921FSRA | X2P4922FSRA |
| XV-2P/17 | 16,8 | 230 | 270 | X2P5121FSRA | X2P5122FSRA |
| XV-2P/19 | 19,2 | 210 | 250 | X2P5321FSRA | X2P5322FSRA |
| XV-2P/22 | 22,8 | 200 | 240 | X2P5521FSRA | X2P5522FSRA |
| XV-2P/26 | 26,2 | 170 | 210 | X2P5721FSRA | X2P5722FSRA |
| XV-2P/30 | 30 | 160 | 200 | X2P5921FSSA | X2P5922FSSA |
| XV-2P/34 | 34,2 | 150 | 190 | X2P6121FSSA | X2P6122FSSA |
| XV-2P/40 | 39,6 | 140 | 180 | X2P6321FSSA | X2P6322FSSA |
P1) Max. working pressure – P3) Max. peak pressure
