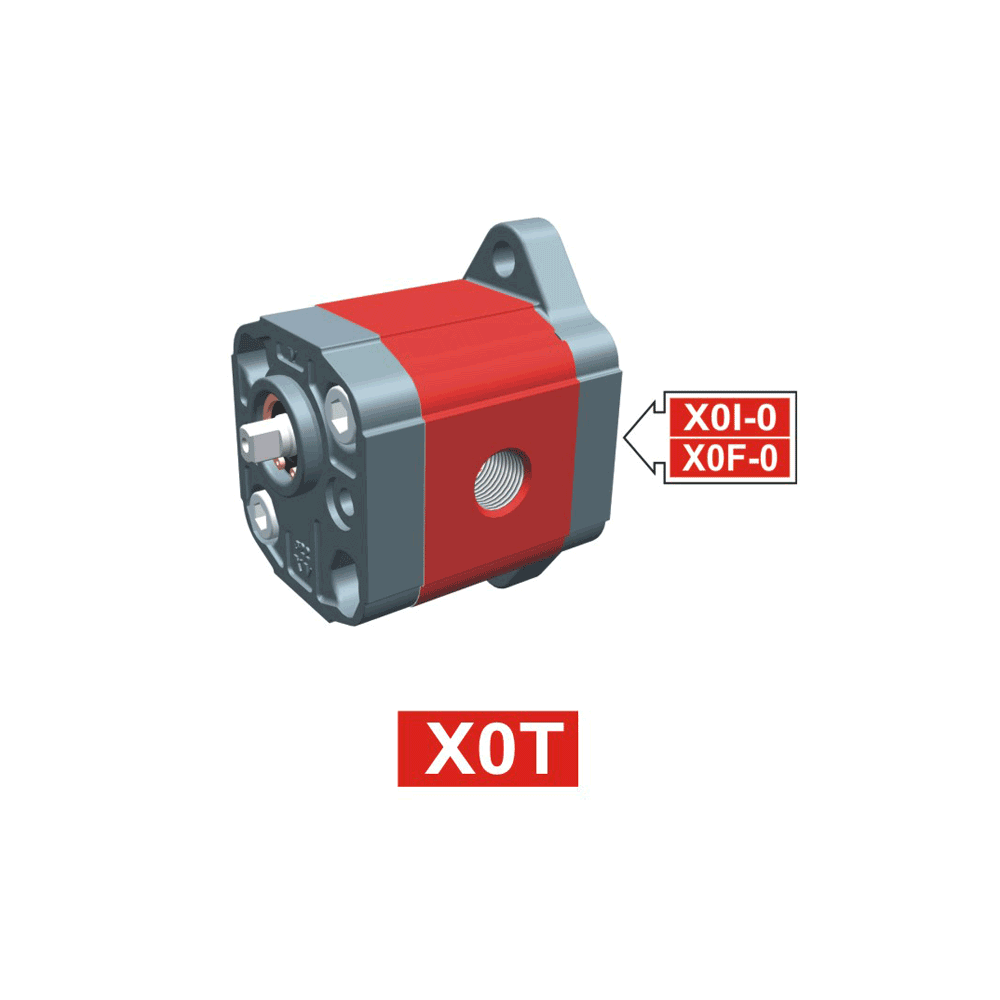

XT017 – HY PRIMARY PUMP ø22 BODY-SHAPED FLANGE - Görsel 1
Büyütmek için tıklayın
VIVOLO

XT017 – HY PRIMARY PUMP ø22 BODY-SHAPED FLANGE

Group 0
Primary Pumps
Kategoriler: Etiketler:
Açıklama

Teknik Veri Tablosu xt017-1.Pdf



Technical data table
TYPEDisplacementMax. PressureCODE
cm3/revP1 barP3 barLeft rotationRight rotation
X0T/0.170220260X0T121BBBAX0T122BBBA
X0T/0.250220260X0T221BBBAX0T222BBBA
X0T/0.450220280X0T421BBBAX0T422BBBA
X0T/0.571220280X0T521BBBAX0T522BBBA
X0T/0.761220280X0T621BBBAX0T622BBBA
X0T/0.981220280X0T721BBBAX0T722BBBA
X0T/1.271220280X0T921BBBAX0T922BBBA
X0T/1.521220280X0T1121BBBAX0T1122BBBA
X0T/2.302190210X0T1321BBBAX0T1322BBBA

P1) Max. working pressure – P3) Max. peak pressure
