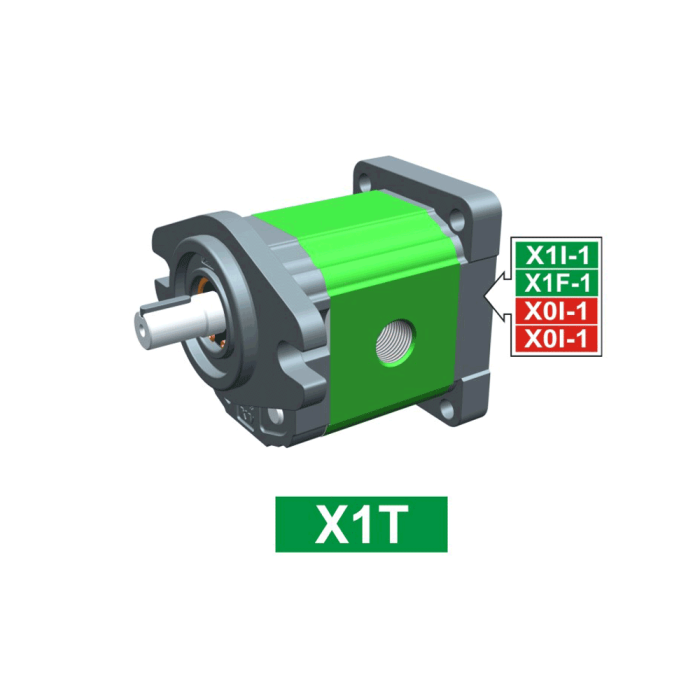

XT168 – ‘SAE AA’ PRIMARY PUMP ø50.8 FLANGE
| Group 1 |
| Primary Pumps |
Açıklama
| Technical data table | |||||
| TYPE | Displacement | Max. Pressure | CODE | ||
| cm3/rev | P1 bar | P3 bar | Left rotation | Right rotation | |
| X1T/0.9 | 1 | 240 | 280 | X1T1661BBBA | X1T1662BBBA |
| X1T/1.2 | 1 | 250 | 290 | X1T1761BBBA | X1T1762BBBA |
| X1T/1.7 | 2 | 250 | 290 | X1T1861BBBA | X1T1862BBBA |
| X1T/2.2 | 2 | 250 | 290 | X1T2061BBBA | X1T2062BBBA |
| X1T/2.6 | 3 | 250 | 300 | X1T2161BBBA | X1T2162BBBA |
| X1T/3.2 | 3 | 250 | 300 | X1T2361BBBA | X1T2362BBBA |
| X1T/3.8 | 4 | 250 | 300 | X1T2561BBBA | X1T2562BBBA |
| X1T/4.3 | 4 | 250 | 300 | X1T2761BBBA | X1T2762BBBA |
| X1T/4.9 | 5 | 250 | 300 | X1T2961BBBA | X1T2962BBBA |
| X1T/5.9 | 6 | 250 | 300 | X1T3161BBBA | X1T3162BBBA |
| X1T/6.5 | 7 | 250 | 300 | X1T3261BBBA | X1T3262BBBA |
| X1T/7.8 | 8 | 220 | 260 | X1T3461BBBA | X1T3462BBBA |
| X1T/9.8 | 10 | 190 | 230 | X1T3661BBBA | X1T3662BBBA |
P1) Max. working pressure – P3) Max. peak pressure
